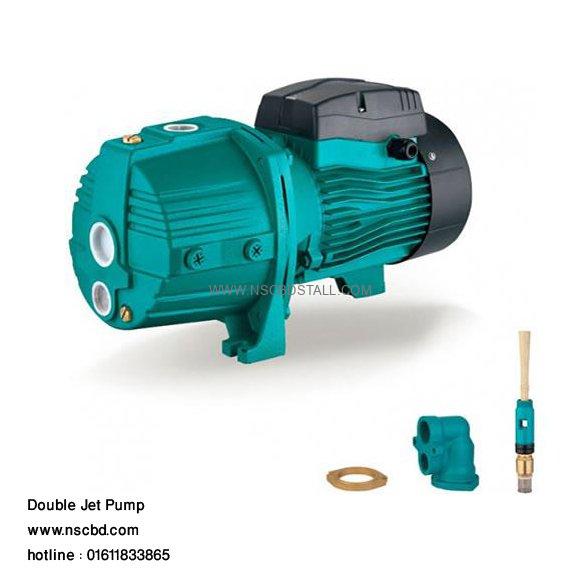

Double Jet Pump Features:
– Cast iron pump body and support under special rust resistant treatment.
– Stainless steel impeller.
– AISI 304 shaft.
– Max. liquid temperature: +40℃.
– Max. suction: +40m.
Double Jet Pump Motor Features:
– C&U bearing.
– Motor with copper winding.
– Built-in thermal protector for single phase motor.
– Insulation class: F.
– Protection class: IPX4.
– Max. ambient temperature: +40℃.
| Pump Model | Power | Phase | Flow (liter / Min) | Head (Meter) | Pipe Size (SN-DN) | |
| HP | KW | |||||
| AJDm 75/2H | 1.00 | 0.75 | ~1 | 2-24 | 43-17 | 1¼”X1″ |
| AJDm110/2H | 1.50 | 1.10 | ~1 | 2-30 | 65-28 | 1¼”X1″ |
Material Table of AJDm Deep Well Jet Pump
| No. | Part | Material | No. | Part | Material | |
| 1 | Elbow | HT 200 | 14 | Ejector | HT 200 | |
| 2 | Gasket seal | NBR | 15 | Sealing cup | NBR | |
| 3 | Pump body | HT 200 | 16 | Cooper sheathing | HPb59-1 | |
| 4 | Diffuser | PPO | 17 | Cooper sleeve | HPb59-1 | |
| 5 | Impeller | AISI 304 | 18 | Terminal box | ABS | |
| 6 | Mechanical seal | Carbon/Ceramic | 19 | Terminal board | PC | |
| 7 | O-ring | NBR | 20 | Stator | ||
| 8 | Support cover | AISI 304/HT 200 | 21 | Motor foot | PA6 | |
| 9 | Support | ZL 102 | 22 | Capacitor | ||
| 10 | Bearing | 23 | Cable holder | |||
| 11 | Rotor | 24 | Rear cover | ZL 102 | ||
| 12 | Venturi tube | PPO | 25 | Fan | PP | |
| 13 | Nozzle | PPO | 26 | Fan cover | PP |
