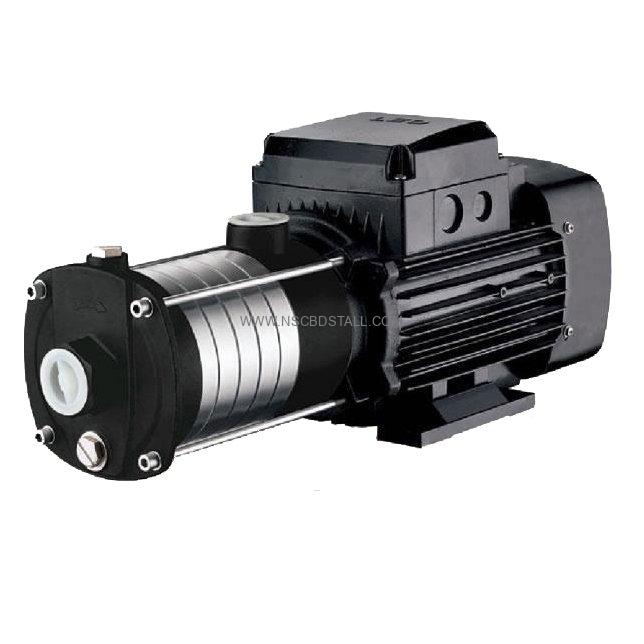

Stainless Steel Horizontal Centrifugal Pump Features
– AISI 304 shaft
– Max. liquid temperature: +85℃
– Altitude: up to 1000m
– Max. suction: 8m
– Max. inlet pressure: limited by max. operating pressure.
ECH Stainless Steel Horizontal Centrifugal Pump Motor Features
– Motor with copper winding
– Built-in thermal protector for single phase motor
– Insulation class: F
– Protection class: IP44
– Max. ambient temperature: +40℃
| Pump Model | Power | Phase | Flow (liter / Min) | Head (Meter) | Pipe Size (SN-DN) | |
| HP | KW | |||||
| ECHm 2-60 (S) (6-11 stories building) | 1.00 | 0.75 | ~1 | 10-60 | 50-23 | 1″X1″ |
| ECHm 4-60 (S) (7-12 stories building) | 1.50 | 1.10 | ~1 | 17-117 | 55-26 | 1¼”X1″ |
| ECH 4-60 (S) (7-12 stories building) | 1.50 | 1.10 | ~3 | 17-117 | 55-26 | 1¼”X1″ |
| ECHm 10-40F (6-9 stories building) | 2.00 | 1.50 | ~1 | 33-22 | 38-24 | 1½”X1¼”
|
| ECHm 10-50F (9-11 stories building) | 3.00 | 2.20 | ~1 | 33-200 | 49-31 | 1½”X1¼”
|
| EDHm 4-60 (3-11 stories building) | 1.50 | 1.10 | ~1 | 17-117 | 53-12 | 1½”X1¼”
|
