Water supply and pressure boosting for all domestic applications.
Garden watering, building water supply and agriculture.
Variable Speed
- MAC550 can adjust performance automatically by adjusting the motor speed according to water demand. It can provide constant pressure to all taps.
Multiple Protection
- Several protective functions are incorporated to ensure its long service life, including pressure protection, blocking protection, leakage protection, no-water protection, dry-running protection, over-heating protection, over/under-voltage protection.
Energy Efficient & Money Saving
- Permanent magnet frequency-converting motor can automatically adjust the RPM to match the required outlet water which helps reduce power consumption and lower your energy bills.
Easy Selection
- One model for most domestic applications.
Low Noise
- Sound level< 47dB (A) in typical use, thanks to water cooled motor.

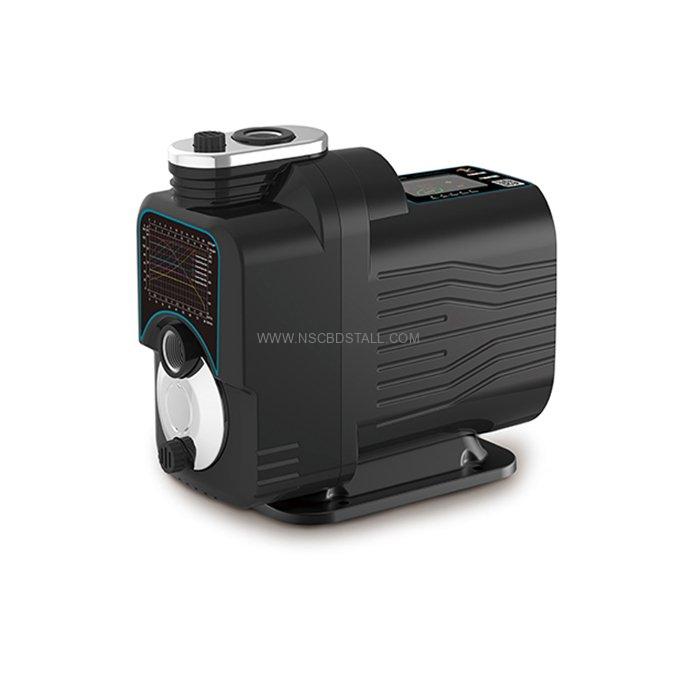

User Friendly Intelligent Pressure Booster Pump
- Working pressure and fault codes are displayed on touch control panel, through which you can adjust working pressure.
Easy Installation
- Compact all-in-one solution, integrating high efficiency pump, nonreturn valve, sensor, speed controller and pressure vessel together.
Technical Details Intelligent Pressure Booster Pump
| Technical data | MAC550 |
| Voltage | 220-240V |
| Frequency | 50/60Hz |
| Max. Power | 550W |
| Max. Flow | 4.8m³/h |
| Max. Head | 40m |
| Max. Speed | 5200rpm |
| Max. Current | 2.7A |
| Max. Suction | 6m |
| Connection Size | G 1″ |
- Ambient temperature: Max. +50℃
- Liquid temperature: Max. +40°C
- Liquid PH value: 6.5 ~ 8.5
- System pressure: Max.10 bar
- Ingress protection: F
- Sound pressure level: 47dB(A) in typical use
- Protection class: IPX4 (Suitable for outdoor installation)
- Dimensions: 392x160x315 mm
- Weight: 11 kg
