SPECIMEN AREA | 100CM2 |
SPECIMEN DIAMETER | 113MM (Approx) |
TYPE OF CUT | STANDARD |
BLADES | HEAVY-DUTY(GERMAN) FOR LONG LIFE |
RUBBER PAD | FOR THIS APPLICATION FOR REPETITIVE TESTS WITHOUT FAIL. |

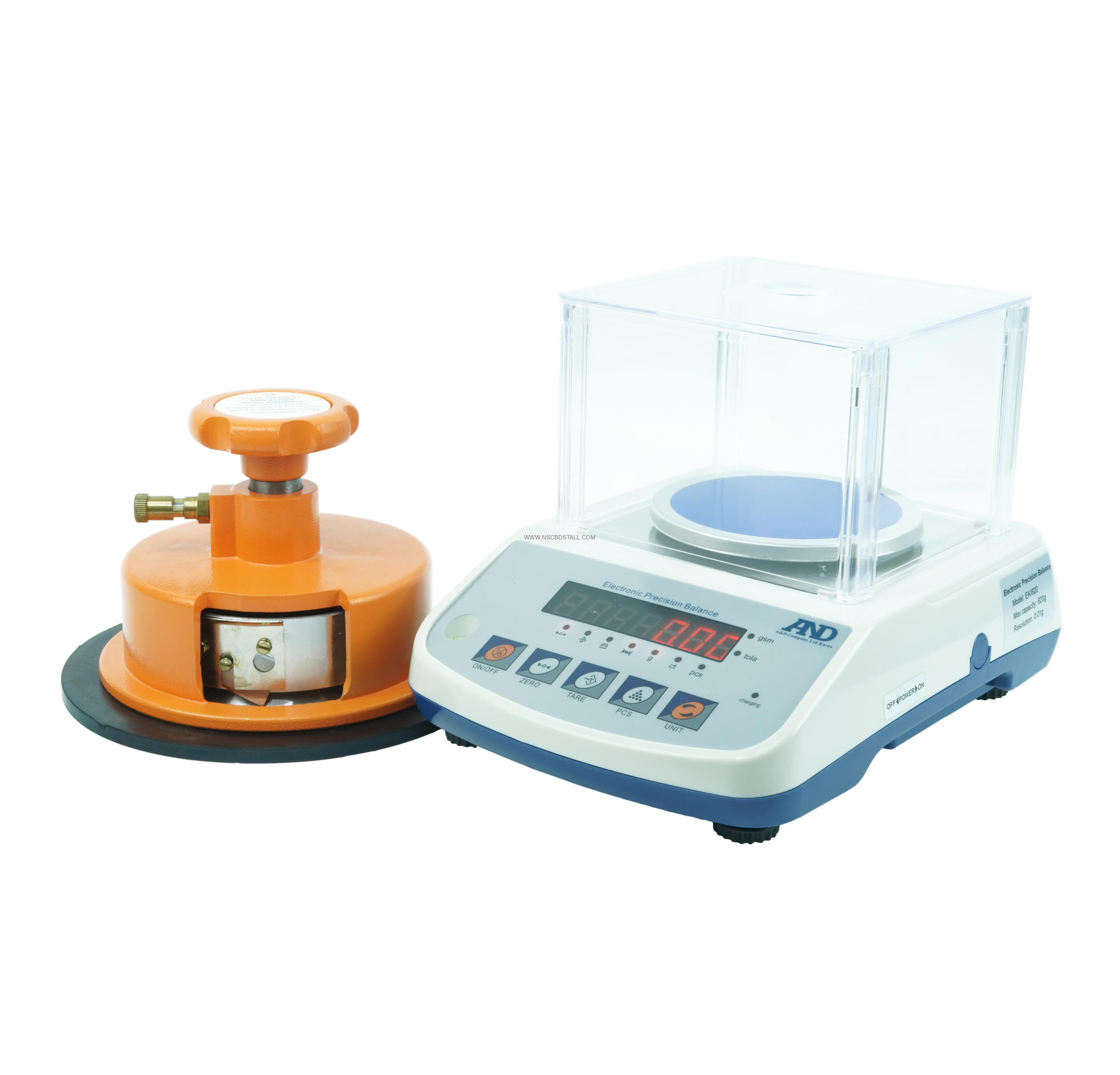

PROCEDURE :
The Cutter has been specially designed to make it portable due to its lightweight. Only the fabric has to be gripped between the cutter base and
Rubber pad cutter top to be rotated gently clockwise direction for accurate cutting of fabric. The cut fabric can be weighed and multiplied by 100
to get GSM.
MAINTENANCE :
To maintain the efficiency of the Cutter:
a) The Blades should be turned or changed when they become damaged or blunt.
b) The Cutting Pad should also be changed when it becomes worn out.
Note:- For best results only approved blades and pads should be used.
ACCESSORY :
For determining the weight per area, a weighing scale having the minimum sensitivity of 0.01 gm is required.

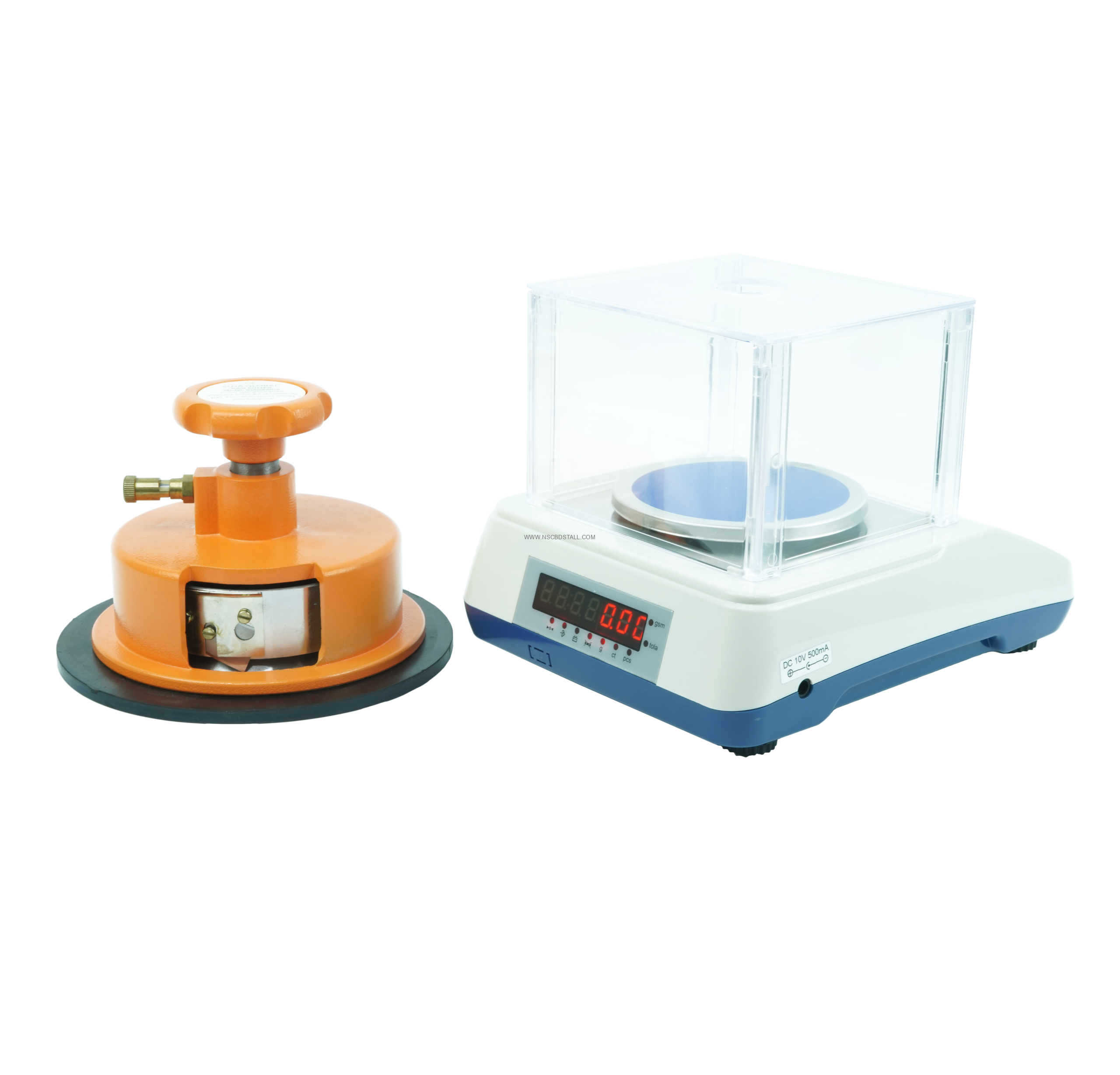

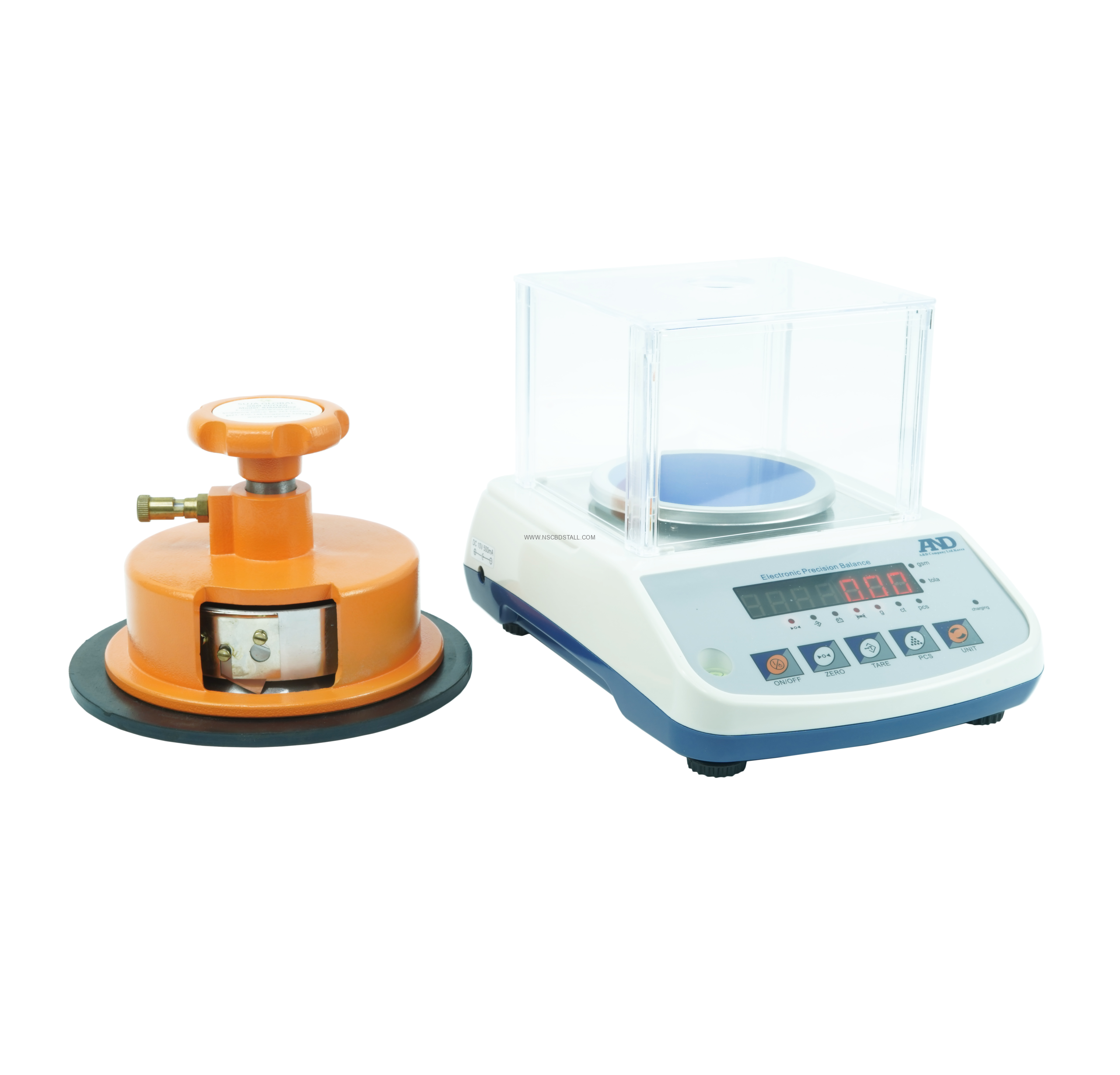

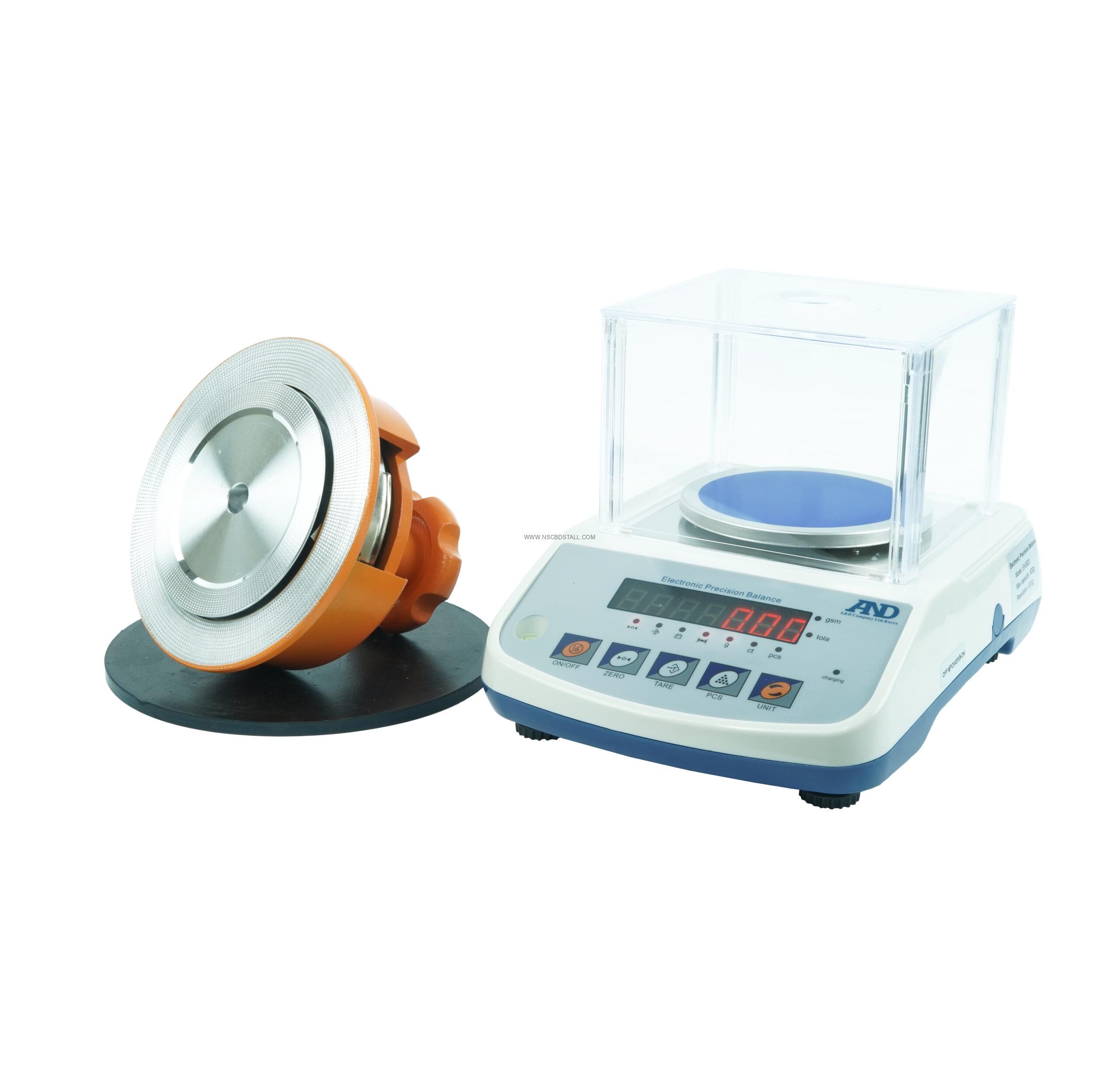

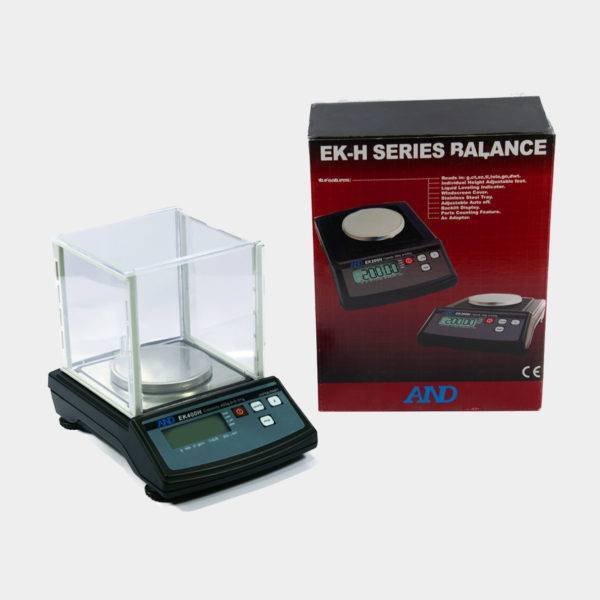

GSM weight Balance
Quick Details
Place of Origin: | Singapore | Brand Name: | AND | Model Number: | EK400H |
Type: | Laboratory Balance | Power Supply: | AC220V OR DC9V | Display Type: | LCD |
Rated Load: | 400g | Accuracy: | 0.01g | Pan size: | 100mm |
sensor: | loadcell sensor | colour: | Black | Max capacity: | 400g |
