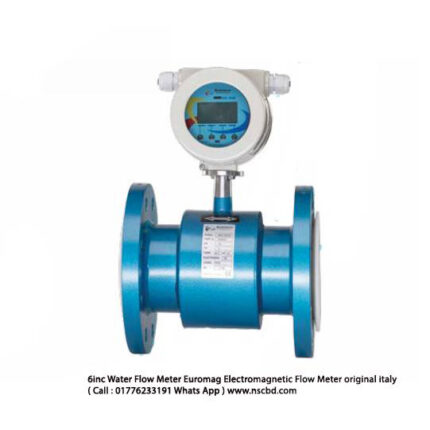

Electromagnetic Flowmeter Water Flow Meter
0.5inch Electromagnetic Flowmeter একটি ইলেক্ট্রোম্যাগনেটিক ফ্লোমিটার একটি বন্ধ পাইপলাইনে পরিবাহী তরলের ভলিউম প্রবাহ পরিমাপ করতে ব্যবহার করা যেতে পারে। এটি রাসায়নিক ও পেট্রোলিয়াম শিল্প, ধাতুবিদ্যা শিল্প, জল এবং বর্জ্য জল, কৃষি ও সেচ, কাগজ তৈরি, খাদ্য ও পানীয় শিল্প এবং ফার্মাসিউটিক্যাল শিল্পের ক্ষেত্রে প্রবাহ পরিমাপ এবং নিয়ন্ত্রণে ব্যাপকভাবে প্রয়োগ করা হয়।
Ambient and working Conditions.
Ambient temperature: sensor: -25°C to + 60°C; converter: -25°C to + 60°C.
Relative humidity: 5% to 90%; Fluid conductivity: 5m S/cm
Maximum fluid temperature
- Compact type: 60°C
- Remote type: Teflon 150°C
- Neoprene 80°C; 120°C
- Polyurethane 70°C
| Production Name | magnetic electromagnetic flowmeter |
| Medium | water;wastewater;Mud and varioue kinds of conductivity liquid |
| Diameter | DN10~DN2000mm |
| Accuracy | +/-0.5% |
| Temperature | <80ºC(rubber); <180ºC(PTFE) |
| Pressure | 4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000) |
| Flow speed | 0.3~10m/s |
| Requirement of pipeline | Upstream ≥5DN;Downstream≤3DN |
| Electrode | Stainless steel 316L(standard);Titanium;Tantalum;Hastelloy |
| Lining | PTFE;Rubber |
| Connection | Flange;thrad;clamp on |
| Body material | Cast steel ;stainless steel |
| Power supply | 220V;24V;Battery |
| Output | Pulse;4~20mA;HART;RS485;MODBUS;GPRS |
| Communication | HART;RS485;MODBUS |
| Explosion proof | Customized |
| Protection | IP65 or IP68 |
| Environment | Environment:-20~60ºC |
| Power | <20W 0.5inch Electromagnetic Flowmeter |

Digital Electromagnetic Water Flow Mete
