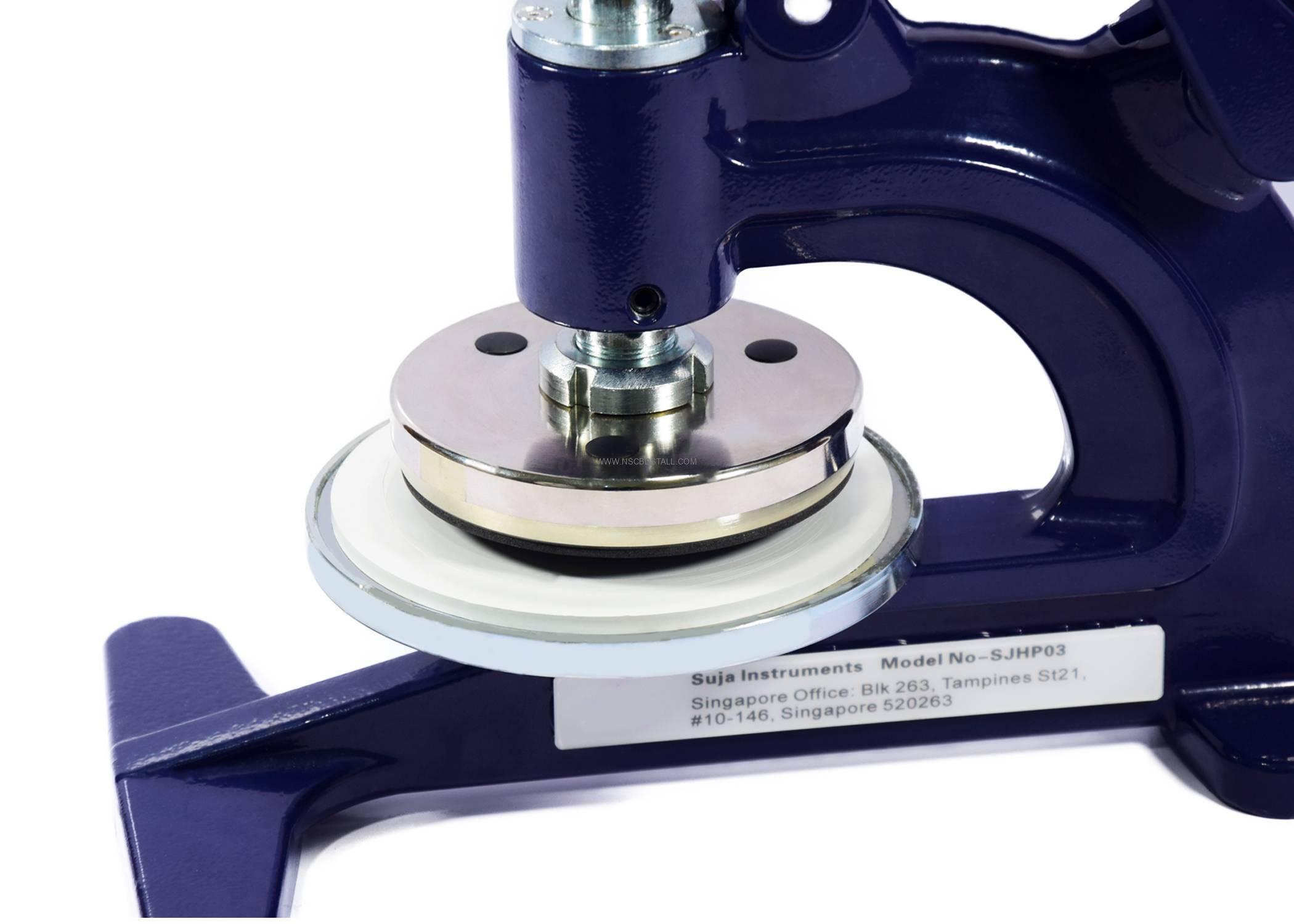

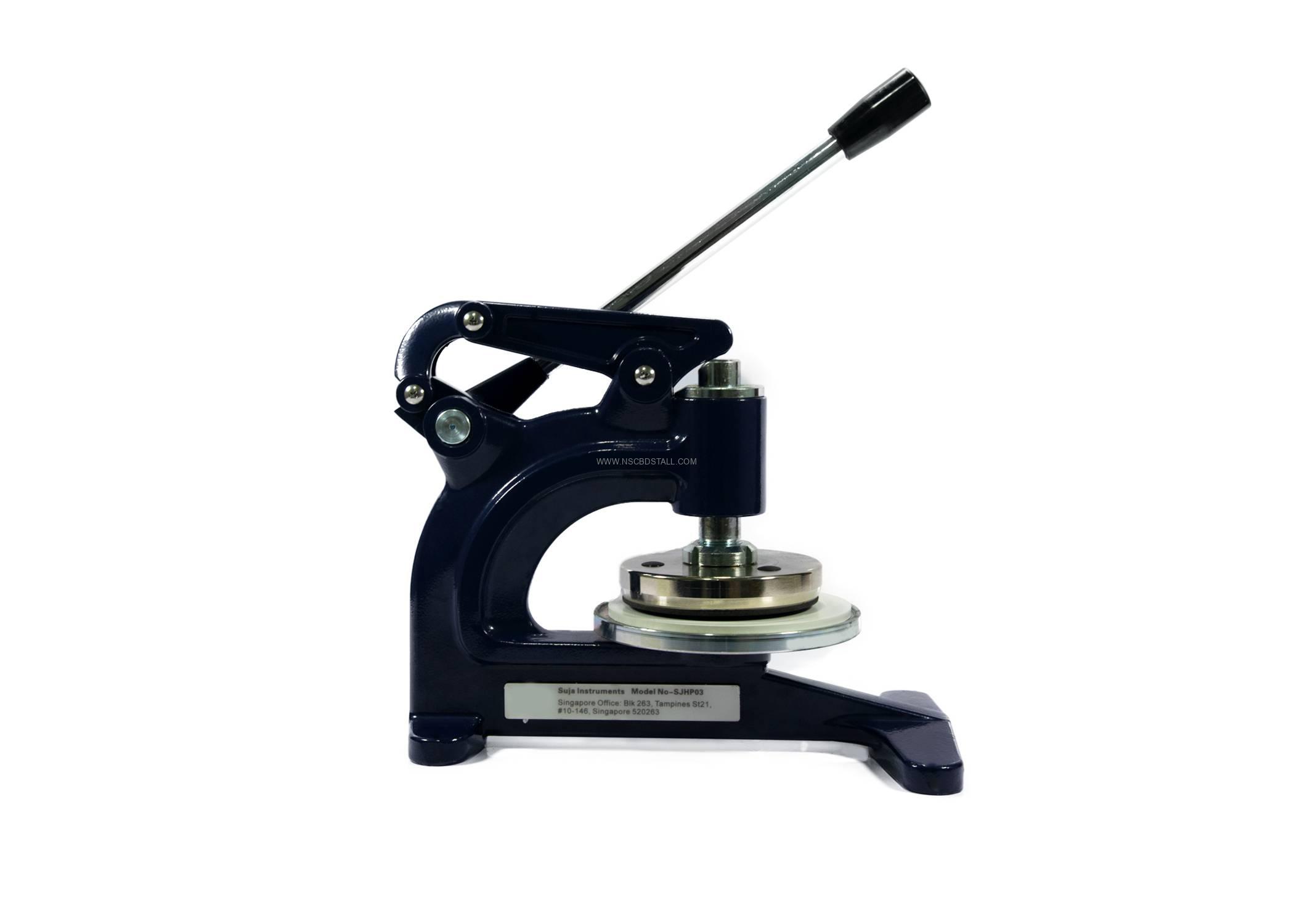

GSM Fabric Circle Hand-press Sample Cutter With Round Blade Knife
This hand press sample cutter cutting die was made of Japan stainless steel. Cutting material are including: Textile, Leather, AL film, Carpet, Plastic, Polyfoam board, Paper, Carbon composite material and so on. Fashionable appearance & Simple operation. Can cut several layers at one time. We offered different cutting die for one sample machine use, such as 100 sq.cm, 50sq.cm, 38sq.cm, 25sq.cm, 20sq.cm, 10sq.cm, (other size and shapes can be customized).
SJHP02 Hydraulic 100cm² Fabric GSM Cutter in Bangladesh
I. Using Japan imported fine knife, sharp and durable, cutting the materials can include textiles, carpets, leather, aluminum foil, plastic, Styrofoam, paper, advanced carbon fiber composite materials.
II. High-grade aluminum fuselage, simple and convenient, fast, multiplayer cutting fabric, improve work efficiency
III. Multi-usage, can choose cutting die 100/50/38/25/20/10 sq.cm (Other specifications ans shapes can be customized)
IV. Structure application of hand pressure type cutting principle, don’t go, don’t cut, cutting accuracy is 100%, ans the complete, high efficiency, save energy, reduce material waste, reduce workload, reduce production costs.
Industrial Aluminium Hand Round Corner Cutter Fabric GSM Cutter
| Material | aluminum |
| Cutting Area | 100 sq.cm |
| Cutting Thickness | 0.1mm-10mm |
| Machine Size | 34cm*34cm*24cm(1-2cm) tolerance |
| Blade Diameter | 112.84mm |
All shapes can be customized according to drawing or sample.
Steps for working of the cutter are as follows:
- The samples to be cut are placed between the sample cutter
- The gentle pressure on the hand wheel is applied
- The internal blades come in contact with the specimen samples
- By rotating the hand wheel tinder pressure, sample is cut cleanly & with smooth edges
- Blades should be turned or changed when they become blunt
- The cutting boards should be turned or changed when they get worn out after prolonged use
- Sample area cut by GSM Cutter is exactly of 100cm2
