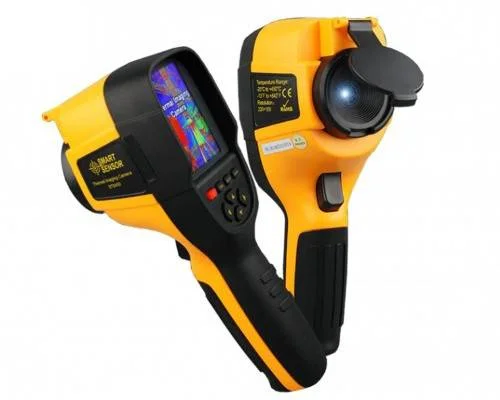

Professional Handheld Infrared Thermal Imager IR Digital Thermal Imaging Camera infrared thermometer Detector 300,000 pixels ST9450
1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product contain the battery because of the limitation of the airline company.
3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !
SMART SENSOR Thermal Imaging Camera integrates surface temperature measurement and real-time thermal image.The traditional infrared thermometer needs to measure svery component one by one while it is not necessary for infrared imaging camera,thus saving time.The potential problems may be displayed on color display screen clearly.Moreover,the central point measurement cursor is used to locate quickly and accurately to measure the temperature of the target object
In order to increase the differentiation,the product is provided with a visible light camera.The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.The supported operating system through verification incluses:win XP,win7,win8,win10,Apply system.It is suggested to use the attached USB cable or USB cable with higher quality
The product can be used in fields of medical treatment,fire fighting,archaeology,traffic,agriculture,geology,energy,amelting,electronic manufacture,etc and is the ideal selection for electrician and maintenance personnel and technicians and can be used to find the problem area quickly.
The following major functions increase the product’s accuracy and usability:
1.The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface.
2.The highest temperature and lowest temperature cursor may guide the users to the areas with highest and lowest temperature of the thermal images.
3.The selectable color palette.
|Brand name:||Smart sensor|
|Display screen||3.2” full angle TFT display screen|
|Infrared image resolution||200*160|
|Visible image resolution||300,000 pixels|
|Field angle/shortest focus length||27°×35°/0.5m|
|Temperature measurement range||-25℃ to 450℃(-13℉ to 842℉)|
|Emissivity||Adjustable from 0.01 to 1.0|
|Frame rate of thermal images||9Hz|
|Color palette||Rainbow,iron oxide red,cold color,black&white,white&black|
|Storage medium||Built-in 3G|
|USB||Micro USB 2.0|
|Power supply||Built-in rechargeable battery|
|Automatic power-off time||Selectable:5 minutes/20 minutes/not power off automatically|
|Working temperature||0℃ to 45℃|
|Storage temperature||-40℃ to 60℃|
| 1.Visible light camera|
2.Infrared imaging sensor
3.Image capture key
| 1.Battery power|
4.Temperature cursor at central point
6.Central point temperature
7.The lowest temperature cursor
8.The highest temperature cursor
9.Maximum value/minimum value of field temperature
| 1.Menu key|
4.Navigation key:UP.down,left and right
|1.Charging:the product is provided with built-in 18650 lithium battery.When the battery power is not sufficient,please charge it through Micro USB interface in time.|
|2.ON/OFF key:hold down ” ” key to power on/off.|
|3.Switching between infrared thermal image and visible image:press” ” or “ “key to switch the degree of fusion between infrared thermal images and visible images(the degree of fusion is 0%,25%,50%,75% and 100%).|
|4.Image capture: press the image capture key.When the capture is successful,the screen will display”store photo?”prompt.If “yes”is selected,please press”MENU”key to confirm to save the image.If”no” is selected,press”SELECT”key to confirm not to save the image.|
|5.The function to hide highest/lowest temperature column at the screen botton:under the operation after normal start up,press” “key and the screen bottom will display highest/lowest temperature column.Press” “can also hide it.|
|6.Image output:The saved images through capture may be checked and output by connecting with a computer through Micro USB|
