Smart Sensor AR944M Under Ground Metal Detector Scanner Finder Rechargeable for Gold Digger Treasure Seeking Hunter with Battery metal detector depth. metal detector price, underground metal detector gold detector, gold hunter in Bangladesh
SMART SENSOR An Underground Metal Detector is an electronic instrument which detects the presence of metal nearby. Underground metal detectors are useful for finding metal inclusions hidden within objects, or metal objects buried underground. They often consist of a sensor probe which can be swept over the ground. Usually the device gives some indication of distance; the closer the metal is, the higher the readings go.
The use of this detector can detect is not buried deep mineral deposits, including native gold, gold, gold,
1. Apply an electromagnetic field to detect the presence of a concealed metal object.
2. Designed to find gold & silver jewelry, coins and other metal in the ground, and can also find land mines.
3. Adjustable height of metal detector, with ground balance & recognition of explore modes.
4. Lighting and audio indicate the detection of metal.
5. Powered by a rechargeable 7.4V lithium battery .
7. Earphone sound mode for using in noisy environment or private search in crowded places.
8. Low battery indication, lighting lamp
|Material:||ABS Plastic + Iron|
|Detectable Indication||Audio / Alarm Buzzer|
|Max Detection Depth||1.5m (50cm*50cm*1.2cm coin)|
|Operating Mode||Ground Balance / Identification|
|Object Detectable||Ferrous / Non-ferrous metals|
|Min Detection Diameter:||3.5cm / 1.38″|
|Operation Temperature||0°C ~ 50°C|
|Storage Temperature||-20°C ~ 60°C|
|Product Net Weight / Size||2380g / 30*30*123.5cm|
|Sensitivity:|| Applicable for detecting gold, silver, aluminum, copper,|
iron, and rare metals.
|Application:|| Testing metal foreign body of raw materials, fuel and food, Detection of|
underground pipeline & line, Archaeology, Exploration, Found buried
treasures of gold, silver and metal artifacts, The acquisition of scrap metal
industry, Customs and safety inspection, Police department detective search,
Detection of Interpol search, Checking metal foreign bodies in express
delivery and luggage.
|Diagram Description and Battery Installation:|
| K: Button|
L: Power ON / OFF
M: Tuning Adjust?
N: Operating Switch
O: Work Adjustment?
P: Sensitivity indication
Q: Power / low power indication light
| R: Light Switch|
S: Earphone jack
T: Charging port

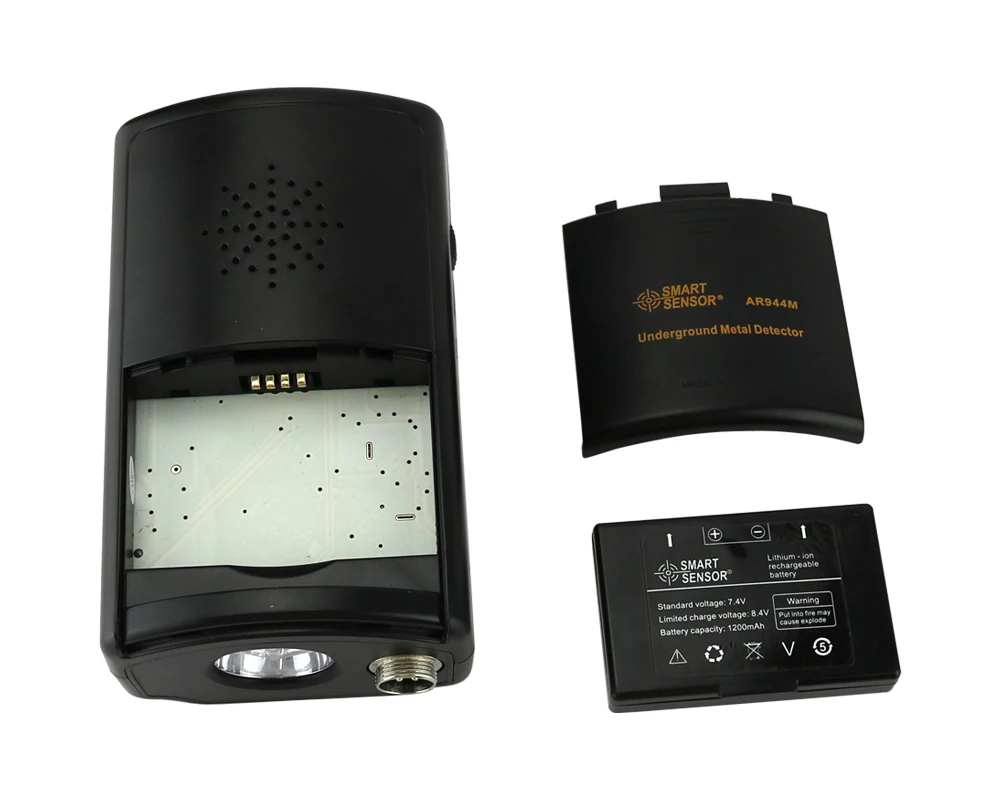

| Battery Installation:|
Push the battery door nether ward by pressing?anti-slip groove on
the bottom of battery door. Install 1* 7.4V li-battery to battery
compartment. See figure 6.

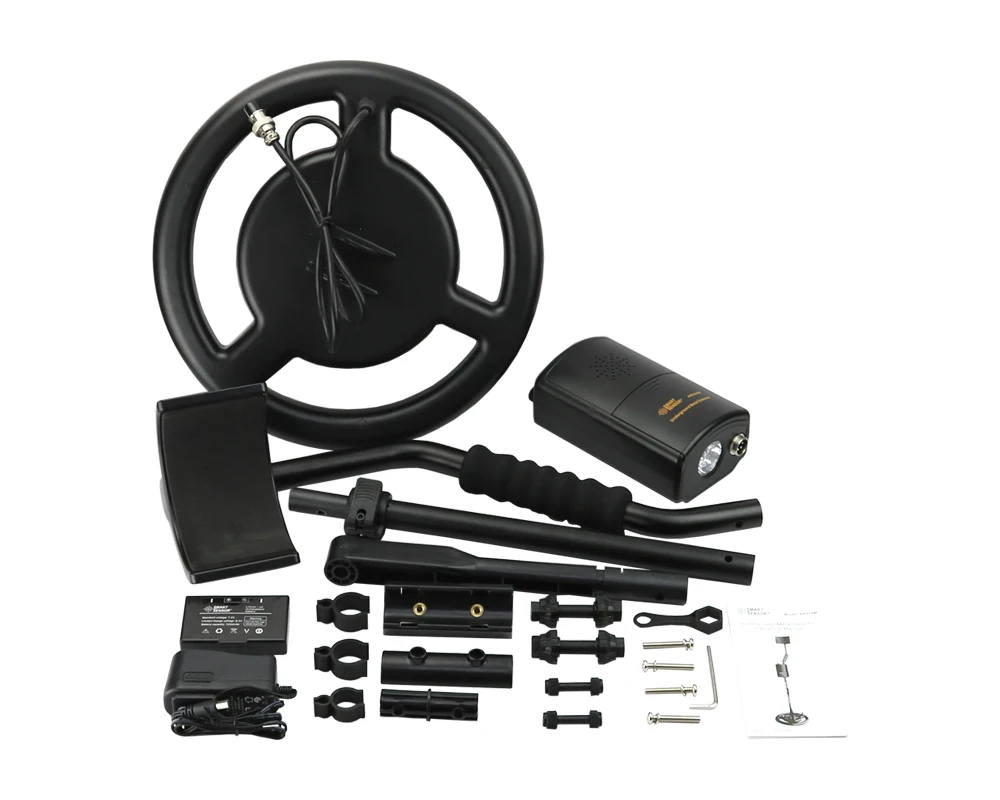

|Parts and assembly diagram|
