TEM1 Aqua Boy Textile Moisture Meter in Bangladesh
Textile Moisture Meter

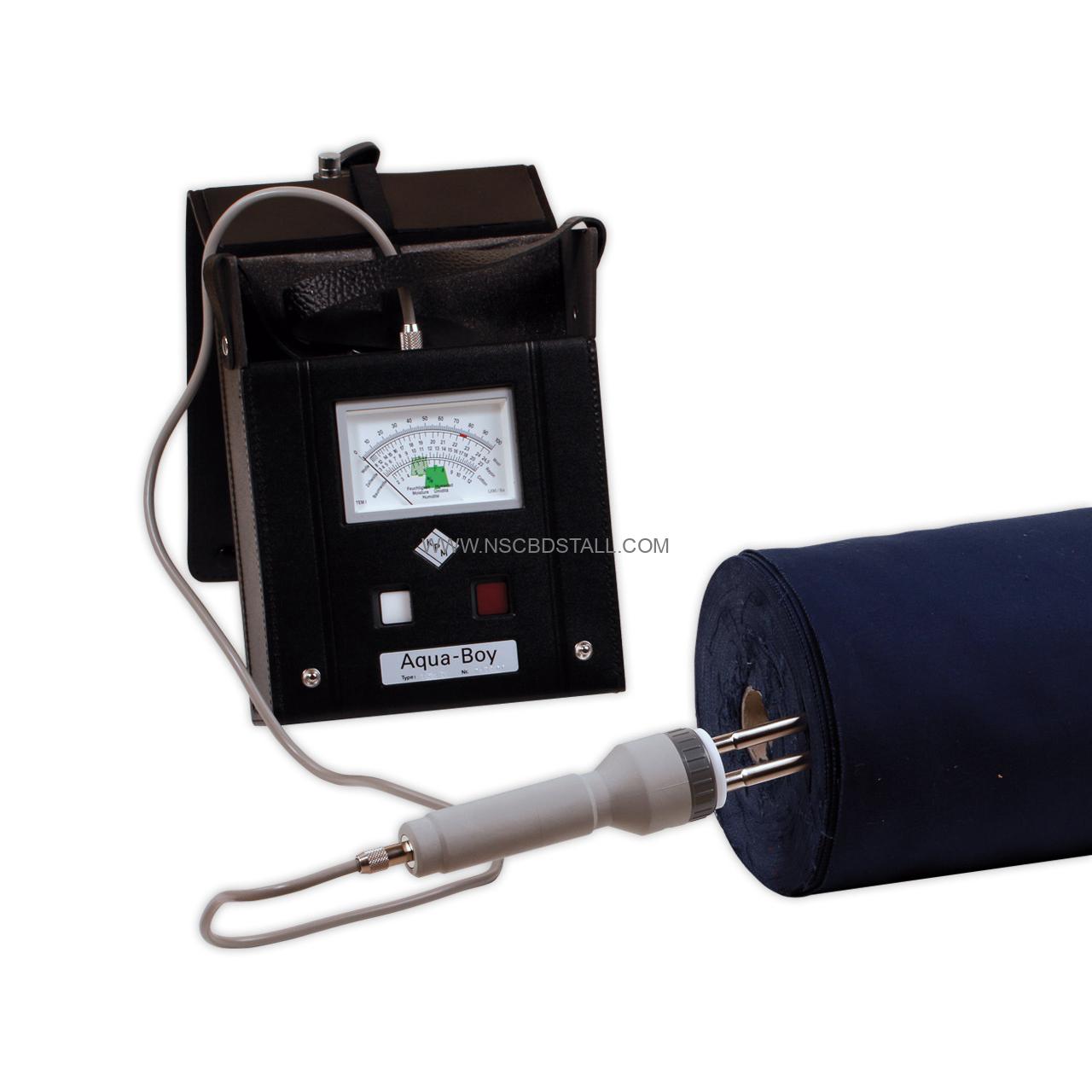

The TEM-1 Aqua-Boy textile moisture meter measures the moisture content in yarn, fabric rolls, filaments, fiber flocks and more. Easy to use and highly portable, these compact meters deliver instant results with an accuracy of 0.1%. Recommended by official test and research laboratories, Aqua-Boy moisture meters are the automatic choice of industrial specialists and scientists worldwide
Features;
- Easy to use for many applications
- Multiple scale for direct readings for wool, rayon and cotton
- Portable, battery-operated
- 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
- High accuracy and repeatability
- Manufacturer’s Test Report optionally available (p/n TEM-1-MTR) TEM1 Aqua Boy Textile Moisture Meter
- Supplied as complete kit with MEM I Moisture Meter with leather carrying case, electrode holder 50204M, connecting cable 50200M, electrode 205 (50205M) and electrode 207 (50207M)
| Standard Electrodes & Accessories; | |
|---|---|
 | 202For raw cotton, with a friction clutch permitting adjustment of a constant pressure. For As the material is compressed, it is crushed on the crusher cone to ensure accurate readings. The electrode connects to the moisture meter direct, without the use of the universal measuring cable. 50202M |
 | 206For measuring yarns, cross-wound bobbins and hanks, needle length 45 mm, weight 45 g 50206M |
 | 208For measuring harder materials e. g. felt, needle length 17 mm, weight 40 g 50208M |
 | 209Stab electrode for textiles in sacks and rolls (needle length 325 mm) 50209M |
 | 209 BSM piercing point 75 mm, insulated shank 175 mm (total length app. 250 mm) 50209BSM |
 | 210Knife electrode for rolls or bales of textile fabric (knife length 110 mm) 50210M |
 | 211Roller electrode for running webs of textiles (roller 27 mm Ø) 50211M |
 | 212Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø) 50212M |
 | 213Surface electrode for fabrics (surface 23 mm Ø) 50213M |
 | 299Calibration electrode with a fixed calibration value 50299M |
| Optional Electrodes; | |
 | 205Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm) 50205M |
 | 207Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm) 50207M |
 | 200-TEM11 meter length cable to connect electrode to indicator |
 | 204Electrode holder. Fixture to secure interchangeable electrodes with connection for 200-TEM1 cable. 50204M |
| Measuring ranges: | Wool: 8 to 24.5% moisture content Rayon: 3 to 23% moisture content Cotton: 2 to 12% moisture content Comparison measurement: 0 – 100 scale |
| Battery: | 9 V E-block |
| Weight net (gross): | Approx. 900 g (1300g) |
| Dimensions: | 200 x 250 x 70 mm (LxWxH) |
