Ultrasonic Thickness Gauge

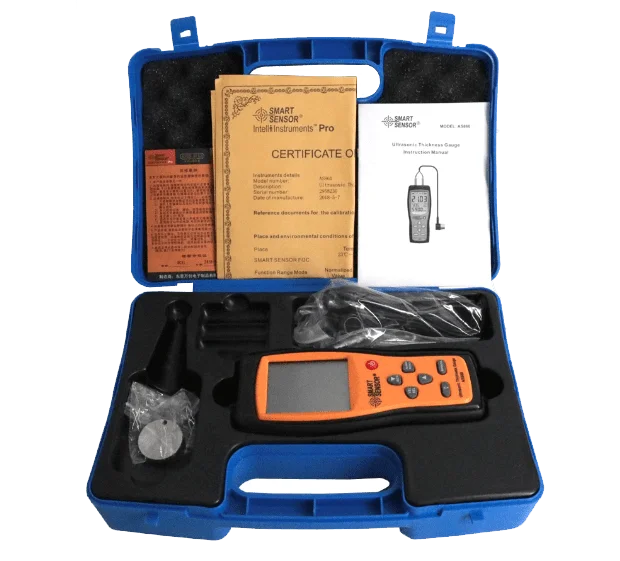

AS860 Ultrasonic Thickness Gauge The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties such as thickness measurement is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications.AS860
SPECIFICATIONS Ultrasonic Thickness Gauge AS860
1) Measuring range: 1.00-300.00mm (steel) or 0.039-11 .81 inch (steel)
2) Accuracy: +/-(1%H+0.1mm) or +/- (1%H +0.004 inch (steel)
H is the thickness of the measured object
- 3) Resolution: 0.01mm (1.00-99.99mm)
- 0.1mm (100~30Omm)
- 0.001 inch (0.039~9.999inch)
- 0.01 inch (10.00-~11.81 inch)
Minimum Limit for tube measuring (steel)
:15X2.0mm or 0:0.591 X0.0787inch (O:6 transducer)
0:20 X3.0mm or O:0.7874 X0.1181 inch (0:10 transducer)
5) Sound Velocity: 1000 to 9999m/s or 0.039~0.393 in/us
Test Block Thickness: <20mm (0.787in), the accuracy of velocity:
+/- 1mm/H X 100% (+/-0.0394/H X 100%)
Test Block Thickness: > 20mm (0.787in), the accuracy of velocity: +/-5%
Operating environment:
- Operation temperature: 0~40 °C
- Environment temperature: <60 °C
- Operation Humidity: <90% RH
Do not apply in violent vibration/ erosive material
Avoid impact and high humidity
Power supply: 1.5V AAA size X3 Pcs
Operation current: <35MA (with back light on)
PACKING INFORMATION
Power 9V battery
Product Net Weight 240g
Product Size 150*80.5*34mm
Packing Gift Box
