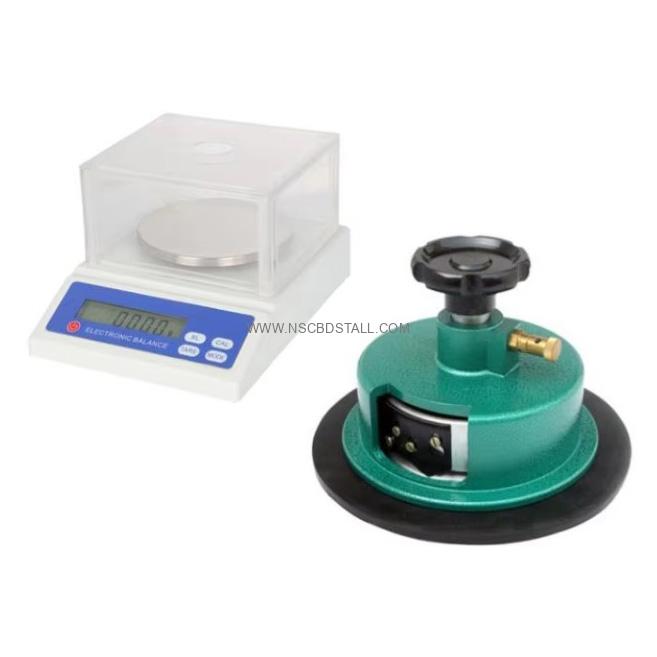

GSM Cutter Balance
RAMP GSM CUTTER is economical equipment to determine the GSM of the fabric (Woven, Non-Woven or Knitted). GSM Round Cutter can be used to cut virtually any type of material including film, foam, carpet, paper, and board.
Equipment
RAMP GSM CUTTER main body is completely made of aluminium casting with Locking (Catch Lock) Mechanism for Safety. The equipment has a set of four replaceable reversible blades i.e. all four sides of the blades can be used. FourSpecial grade, Grey-cutting pads are provided to support while cutting the sample. The equipment is meticulously finished with metallic Brown paint.
Salient Features |
---|
Economical equipment to determine GSM (Grams per square meter) of any type of fabric. |
A good grade of aluminium is used in the main body for lightweight, robustness & resilience. |
Stainless steel blade holders for lifelong excellent operations. |
Supplied with rubberized foam cutting pad for smooth cutting & long life of the blades. |
Technical Specification | ||
---|---|---|
Size of the Sample Dia. to be cut | : | 100 cm2 |
Cutting Blades | : | Reversible i.e. can be used from all four sides. |
Movement of handwheel | : | ¼ Round to cut a sample |
No. of Cutting Pads | : | 2 No. |
Size of the grey cutting pads | : | 215 (L) x 215 (W) x 22 (H) mm |
Overall Dimensions of the unit | : | 215 (D) x 130 (H) mm |
Net Weight of the unit | : | 2.08 Kg. / Gross Weight :- 3.5 kg |
Accessories | ||
---|---|---|
Main Unit | : | 01 Nos. |
Special Grade-Cutting Pads |
Related Standards |
---|
ASTM D 3776 / 2646 – 96 |
ISO 3801 |
BS 3424 / 2471 |
BSEN 12127 |
GSM weight Balance
Fabric weight balance Schroder -GSM200
Detailed Product Description
Specifications:
Built-in four display units g, g/m2, oz, oz/yd2
Max. Capacity 200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005
Schröder Fabric Weight Balance
Specifications:
Built-in four display units | g, g/m2, oz, oz/yd2 |
Max. Capacity | 200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005oz, 590 oz/yd2 x 0.05oz/yd2 |
Platform Size | Diameter 100mm (Round) |
Completed With | Plastic Wind Shield |
Power Supply | 12 VAC ~150mA Adapter or 6 x AA Batteries |
